Industrial Production
iSLM420 Ultimate is an industrial-grade metal 3D Printer, especially suitable for custom manufacturing of single or small batch functional parts with an extremely large building plate. Compatible with a wide range of materials for various applications and significant printing capabilities. Ideal for those who want to print extremely large, detailed objects with complex geometric shapes.
3D Printing TechnologySelective Laser Melting (SLM)
Beam (diameter@1/e2)0.06~0.20mm
Parts Scanning Speed up to 10.000mm/sec
Build Volume420mm × 420mm x 500mm

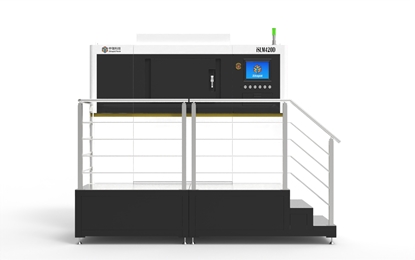

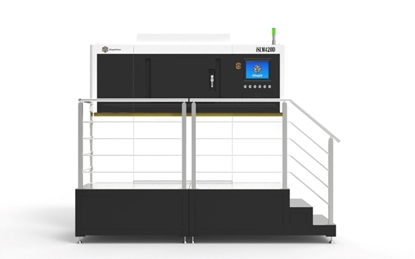

iSLM420D Ultimate is an industrial-grade metal 3D Printer, especially suitable for custom manufacturing of single or small batch functional parts with an extremely large building plate. Compatible with a wide range of materials for various applications and significant printing capabilities. Ideal for those who want to print extremely large, detailed objects with complex geometric shapes.
3D Printing TechnologySelective Laser Melting (SLM)
Beam (diameter@1/e2)0.06~0.20mm
Parts Scanning Speed up to 10.000mm/sec
Build Volume420mm × 420mm x 500mm

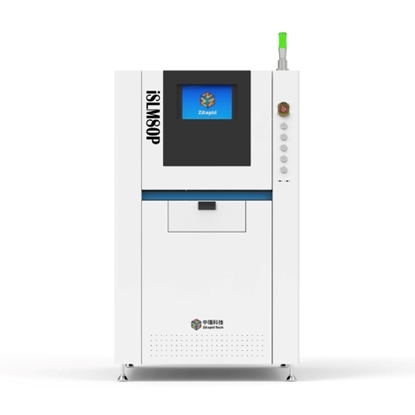

The iSLM80P Ultimate is a metal 3D printer designed for applications requiring high precision and detailed geometries. It is engineered to create small, intricate components with precision ranging from 5μm to 25μm. The machine is ideal for industries like electronics, aerospace, energy, and biomedicine, where accuracy and surface quality are critical.
3D Printing TechnologySelective Laser Melting (SLM)
Laser TypeFiber laser
Laser Power100W
Spot Size≈22um
Scalable, semi-automated 3D manufacturing solution designed to grow with your prototyping and production needs
3D Printing TechnologyFigure 4
Build Volume124.8 x 70.0 x 346 mm
Layer Height10 – 100 microns
Ανάλυση X/Y1920 x 1080 pixel - 65 microns
A cost-effective, turnkey solution for Meltio Engine robot integration, designed to offer industries a secure and efficient way to manufacture metal 3D-printed components. The Meltio Engine Robot Cell delivers exceptional versatility, supporting metal 3D printing, repair, cladding, and feature enhancement applications.
3D Printing TechnologyLaser Metal Deposition (LMD)
Laser TypeMeltio Engine Robot - Laser Integration Kit
Product Dimensions (WxDxH)4.050 x 2.350 x 3.000 mm
Material CompatibilityAny commercially available metal in wire or powder
Combines the design flexibility of additive manufacturing in configurable, in-line production cells to deliver a customizable and automated direct 3D production solution.
3D Printing TechnologyFigure 4
Build Volume124.8 x 70.0 x 346 mm
Layer Height10 – 100 microns
Ανάλυση X/Y65 microns
