Prototyping
Prototyping is an essential stage in the development and production of a product. It enables visual and functional evaluation, verifies assembly and fit with other components, and allows the strength and properties of the part to be tested. With 3D printing, prototype production is more accessible than ever. A physical object can be created from a digital file within hours, with a wide range of technologies and materials available.
ANiMA offers a wide range of 3D printers, materials, and technical expertise for the production of high-quality prototypes. Consult our specialized team to identify the right solution based on the size, level of detail, accuracy, and mechanical properties required for your prototypes.
- 1
- 2
Display
per page
The iSLM280 is an industrial-grade metal 3D Printer, with a large building plate, open materials and significant printing capabilities. A Value for Money solution for those who want to print large objects.
3D Printing TechnologySelective Laser Melting (SLM)
Beam (diameter@1/e2)0.06~0.20mm
Parts Scanning Speedup to 10.000mm/sec
Build Volume280mm x 280mm x 400mm
Accessing high fidelity, functional plastic or elastomeric prototypes has never been faster or easier, with up to 3x higher 3D printing speeds than similar class printers and finished part delivery up to 4x faster with 3D Systems MJP EasyClean System.
3D Printing TechnologyMultiJet (MJP)
Build Volume295 x 211 x 142 mm
Layer Height32 microns
Product Weight211 kg
This 3D printer offers lightning-fast printing, a large working area, access to the full range of materials, and open printing parameters. All designed to give you more freedom to innovate more and faster.
3D Printing TechnologySelective Laser Sintering (SLS)
Build Volume130x180x330 mm
Layer Height75 - 175 microns
3D Printing TechnologySelective Laser Sintering (SLS)
Affordable and versatile for low-volume production and fast prototyping, offering quality and accuracy with industrial-grade durability, service, and support.
3D Printing TechnologyFigure 4
Build Volume124.8 x 70.2 x 196 mm
Layer Height10 - 100 microns
Maximum Print SpeedUp to 100mm/hr
The ProJet MJP 5600 is a large-format, Multi-material 3D printer that offers print speeds up to two times faster than similar PolyJet machines. Plus, with a larger build volume, you can leverage the ProJet MJP 5600’s capabilities to reduce part costs by up to 40% compared to those of competing multi-material 3D printers.
3D Printing TechnologyMultiJet (MJP)
Build Volume518 x 381 x 300 mm
Layer Height13 microns & 16 microns
Material Compatibility5 base materials: rigid white, black or clear, elastomeric black or natural
Expand your manufacturing capabilities with blue lasers, a large build volume, and a fully inert chamber for the best material properties. Printing is easier due to the improved process control, advanced sensors and live monitoring, allowing you to produce parts consistently 24/7.
3D Printing TechnologyLaser Metal Deposition (LMD)
Build Volume300 x 400 x 600 mm
Material CompatibilityAny commercially available metal in wire
Laser Power1000w
Reliable, open-material, and cost-effective for industrial dental production. iDEN160 Ultimate is a metal 3D Printer with a large building plate and significant printing capabilities to create parts in high accuracy, for precision samples.
3D Printing TechnologySelective Laser Melting (SLM)
Beam (diameter@1/e2)0.04~0.15mm
Parts Scanning Speedup to 10.000mm/sec
Build Volume160mm × 160mm × 130mm - 140mm
The iSLA1100 Ultimate is an SLA 3D Printer from ZRapid.
3D Printing TechnologyStereolithography (SLA)
Number of LaserSole Laser
Laser TypeDiode-pumped solid-state laser Nd:YVO₄
Laser Wavelength354.7nm

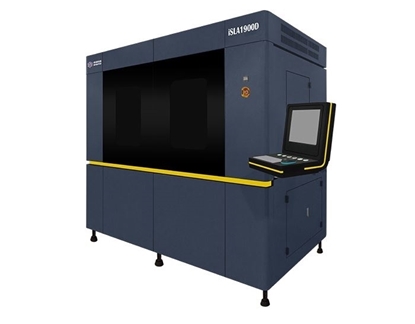

The iSLA1900D Ultimate machine is an industrial-grade stereolithography (SLA) printer capable of printing extremely large plastic parts of high accuracy and detail. Ideal for plastic prints of large volumes for prototyping or casting.
3D Printing TechnologyStereolithography (SLA)
Number of LaserDual Laser
Laser TypeDiode-pumped solid-state laser Nd:YVO₄
Laser Wavelength354.7nm
The iSLA660 Ultimate is an SLA 3D Printer ideal for prototyping from ZRapid.
3D Printing TechnologyStereolithography (SLA)
Laser TypeDiode-pumped solid-state laser Nd:YVO₄
Laser Wavelength354.7nm
Laser Power1000/2000/3000mW
The iSLA880 Ultimate machine is an industrial-grade stereolithography (SLA) printer capable of printing extremely large plastic parts of high accuracy and detail. Ideal for plastic prints of large volumes for prototyping or casting.
3D Printing TechnologyStereolithography (SLA)
Laser TypeDiode-pumped solid-state laser Nd:YVO₄
Laser Wavelength354.7nm
Laser Power1000/2000/3000mW
The D600 Pro 3 HS is a fully upgraded high-speed printing version of the D600 Pro, featuring a deeply optimized Klipper firmware for revolutionary performance breakthroughs. Equipped with a newly designed high-performance hotend capable of ultra-fast extrusion up to 90mm³/s and an enhanced motion system, it achieves stable printing speeds of 300mm/s—five times faster than the standard D600 Pro.
3D Printing TechnologyFFF - FDM
Maximum Print Speed300mm/s
Number of Print Heads2
Filament Diameter1.75mm
