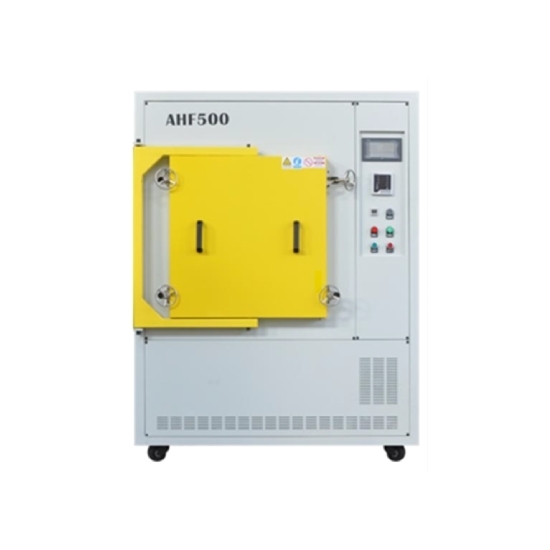

Atmosphere Heat Treatment Furnace AHF500

With its large internal volume, the system enables heat treatment of oversized parts or batch processing to reduce operating costs. Gas shielding ensures the correct atmosphere for your application while keeping nitrogen consumption to a minimum. The sealed door design supports the use of a vacuum pump for efficient initial air removal from the chamber. Active door-seal cooling is provided by a dedicated water chiller.

Request a quote

Description

Specifications

Furnace size: 500mm x 500mm x 500mm

Power: 380V/50Hz 21KW

Heating temperature: Maximum temperature 1200℃, Continuous working temperature ≦1100℃

Heating speed: Recommended ≤10℃/min, Fastest heating speed 20℃/min

Temperature control method: With PID adjustment, self-tuning function, 30-stage temperature rise and fall program

Temperature control accuracy: Temperature control accuracy ±1℃

Control mode: Fully automatic PLC control

Furnace structure: Double-layer shell structure

Integrated vacuum pump

Machine size: 1260 mm (W) × 960 mm (D) × 1680 mm (H)

Weight: 500kg
