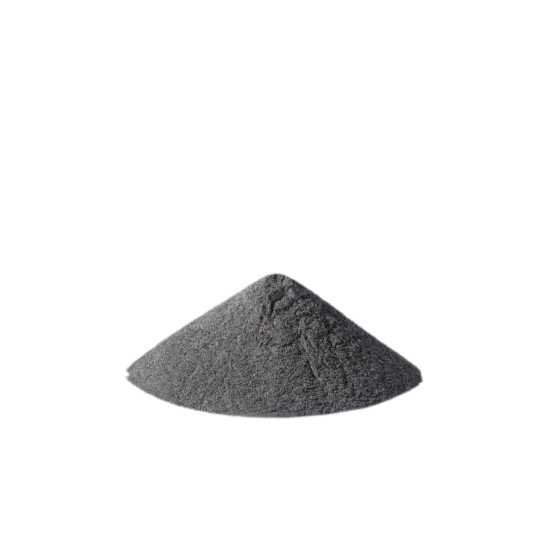

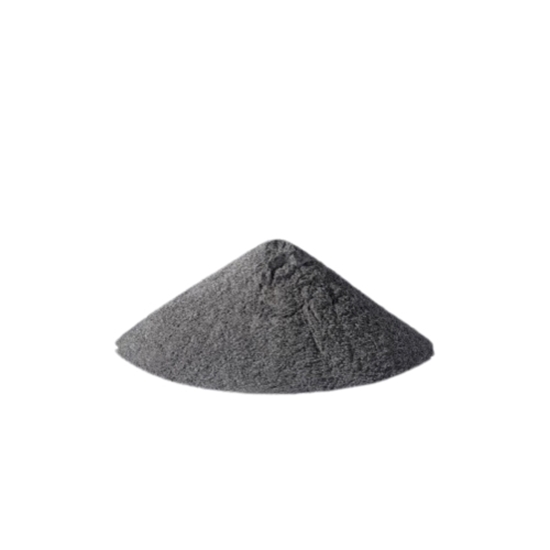

Picture of Mold Steel Powder MS1

Mold Steel Powder MS1

High-hardness, wear-resistant material with good polishability, ideal for injection molds, conformal cooling channels, mold inserts, and mold cores.
Request a quote
Description

Specifications

P-Physical property

Granule Diameter:

15-53 um

Shape:

Sphere

Flow ability:

40 S (Hall current meter)

Apparent density:

4.3 g/cm3

Tap density:

8 g/cm3



Chemical composition

Fe:

Bal.

Co:

8.5～9.5 wt%

Ni:

17～19 wt%

Mo:

4.2～5.2 wt%

Mn:

≤0.1 wt%

Ti:

0.6～0.8 wt%

C:

 ≤0.03 wt%

AI:

 0.05～0.15 wt%

S:

 ≤0.01 wt%

Cr:

 ≤0.3 wt%



Performance of molded parts

Density:

≥99.9%

Rm Tensile Strength:

About 1090 MPa (1930 MPa after heat treatment strengthening)

Yield Strength:

About 1000 MPa (1890 MPa after heat treatment strengthening)

Elongation:

About 4%

Elastic Modulus:

Approximately 160 GPa (180 GPa after heat treatment strengthening)

Hardness:

Approximately 35 HRC or 323 HB (After heat treatment, it can reach 55 HRC or 585 HB)

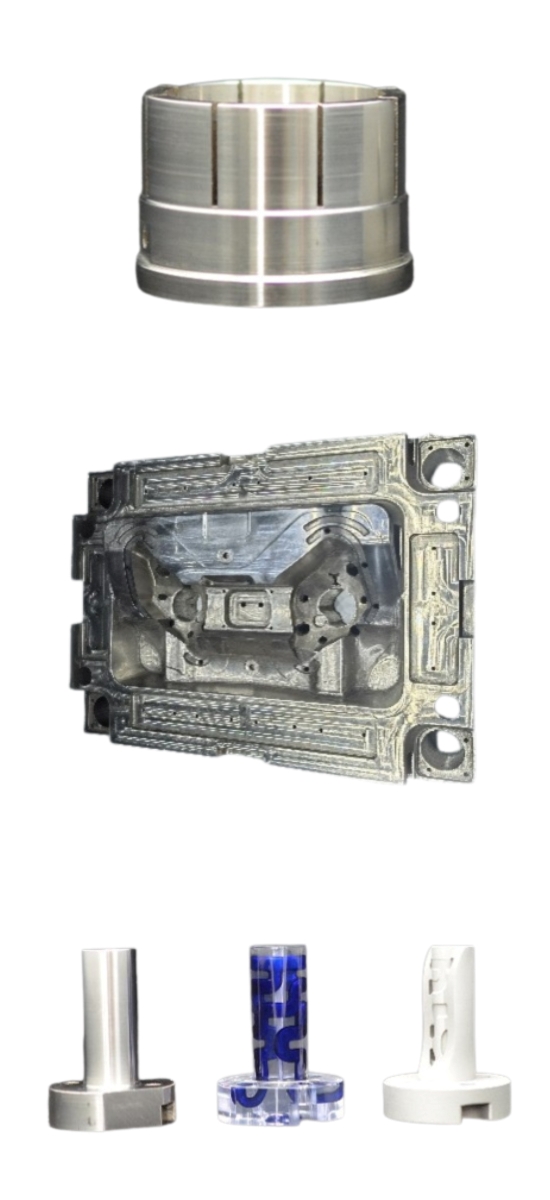

Picture for category Specifications

Our expert team will help you find the best solution tailored to your specific needs! info@anima.eu

Contact us today
