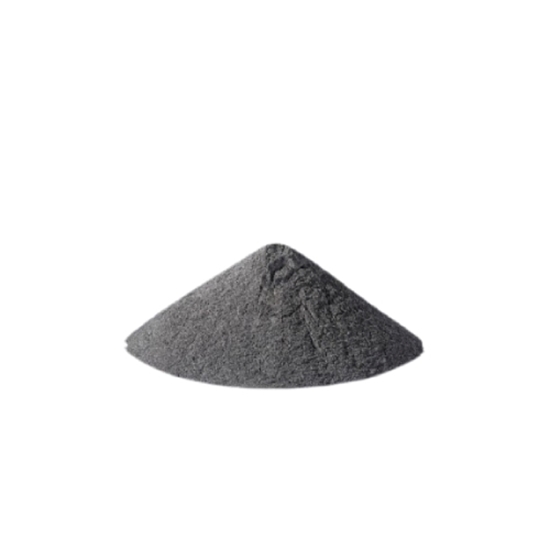

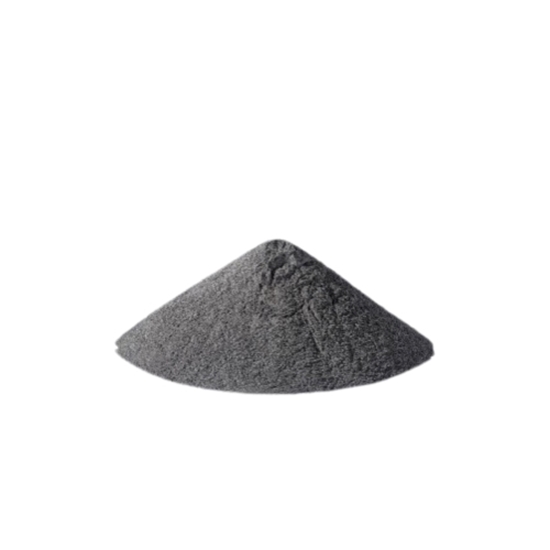

Titanium alloy Powder TC4

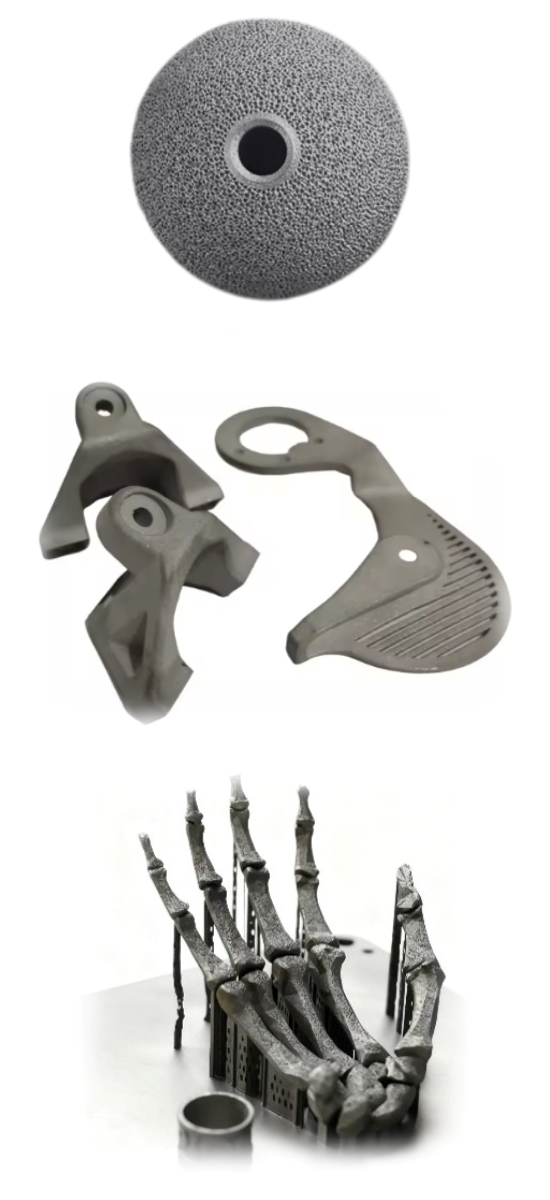

Titanium is a lightweight yet extremely strong metal known for its excellent corrosion resistance and biocompatibility. These properties make it ideal for demanding applications such as aerospace frames, medical implants, and high-performance racing parts where strength, durability, and low weight are essential.

Request a quote

Description

Specifications

P-Physical property
Granule Diameter:	15-45 um
Shape:	Sphere
Flow ability:	45 S (Hall current meter)
Apparent density:	2.5 g/cm3
Tap density:	4.51 g/cm3

Chemical composition
Ti:	Bal.
Al:	5～6.75 wt%
V:	3.5～4.5 wt%
Fe:	≤0.25 wt%
C:	≤0.02 wt%
Y:	≤0.005 wt%
O:	0.14～0.16 wt%
N:	≤0.02 wt%
Cu:	≤0.1 wt%
Other:	0.4 wt%

Performance of molded parts
Density:	≥99.9%
Rm Tensile Strength:	≥1000 MPa
Yield Strength:	≥900 MPa
Elongation:	≥10%
Elastic Modulus:	About 110 GPa
Hardness:	About 300 HV (294 HB)
